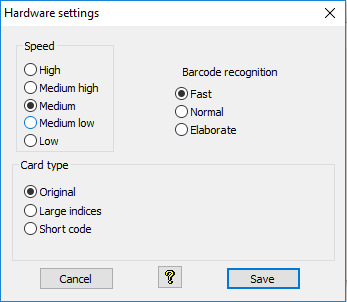

Hardware settings

SPEED
You can set the sorting speed in this dialog. The actual speed varies depending on what hardware you have got and the condition of it (also the PC matters).

Optimum speed
Optimum speed is when the operator and the machine work in tempo.

You should first of all check that the computer does not delay the process if you have to wait for the machine to finish sorting.

It is not a good idea to increase the speed in an attempt to compensate for a slow computer as it will make the system more error prone (see what we write about too high speed below). .

High speed -> high stack
Note that high speed implies that the stack of cards in the hopper also need to be high. That is to say, you need to top up the hopper if you want to run at top speed. And the other way around; you should reduce the speed if you for some reason (best known to yourself) want to duplicate with only one deck in the hopper.

BARCODE RECOGNITION
Fast means that the software performs fewer tests before it gives up. Similarly Elaborate implies more tests than normal. You should switch to Elaborate if you frequently get the Card not recognized message. (Card not recognized messages indicate that the circumstances are not good, e.g. because of worn, dirty cards).

CARD TYPE
We can only guarantee that the machine does its job so long as you use Duplimate cards (it should say "Jannersten" in the small print on one of the cards).

Large indices
Select this alternative if you have cards where the top end of the indices are close to the edge. By "close" we mean that the margin between the top end of the index and and the short edge of the card is less than 3 mm.

Short code
Choose this alternative if you have cards where the barcode does not go all the way to the card edge.
